Why add an encoder to a BLDC motor?

An encoder gives the controller real-time speed and position feedback, enabling closed-loop control. Without an encoder, a BLDC motor runs open-loop on Hall sensors only — fine for fixed-speed applications but not for closed-loop speed regulation, exact stopping position or torque-mode control. Required for any AGV, AMR, robotics, CNC or precision automation.

Incremental vs absolute encoder — which to use?

Incremental encoders (1024-2500 PPR) output pulse trains and are sufficient for closed-loop speed feedback — most AGV, conveyor and packaging drives. Absolute encoders (17-bit / 131,072 counts/rev) report exact position and recover position after power loss — required for CNC sub-axes, robotics and any application where wheel-position recovery matters.

What encoder protocols are supported?

Standard incremental encoders output A/B/Z pulse signals (TTL or HTL). Absolute encoders typically use SSI, BiSS-C or EnDat. Communication-bus encoders speak CANopen, EtherCAT or RS485 / Modbus depending on controller. Tell us your controller and we will match the encoder configuration.

Can the encoder be added after the motor is built?

Yes for BLDC motors with extended rear shaft and encoder mounting boss. Retrofit kits are available for selected frame sizes. For OEM projects we recommend specifying the encoder up front so the motor housing, shaft length and cable management are designed correctly.

Does an encoder make this a servo motor?

Adding an encoder is the first step. A full servo system also requires a closed-loop controller that uses the encoder feedback to regulate position, velocity or torque. See our BLDC servo motor page for fully integrated closed-loop solutions.

What information should I send for a quote?

Send target voltage, power, output speed, torque, encoder type (incremental / absolute), required PPR or resolution, encoder protocol (A/B/Z, SSI, BiSS-C, EtherCAT etc.), shaft, mounting and quantity. Also tell us your controller — we'll match the encoder pinout to your drive.

Closed-Loop BLDC Motor

BLDC Motor With Encoder — Closed-Loop Speed And Position Feedback.

Adding an encoder turns a BLDC motor into a closed-loop drive. The encoder feeds real-time speed and position data back to the controller, which then regulates current to track a commanded velocity, position or torque. Required for any application that needs accurate speed regulation, exact stopping position or torque-mode control — AGV, AMR, robotics, conveyor, CNC and packaging.

Request a Quote WhatsApp

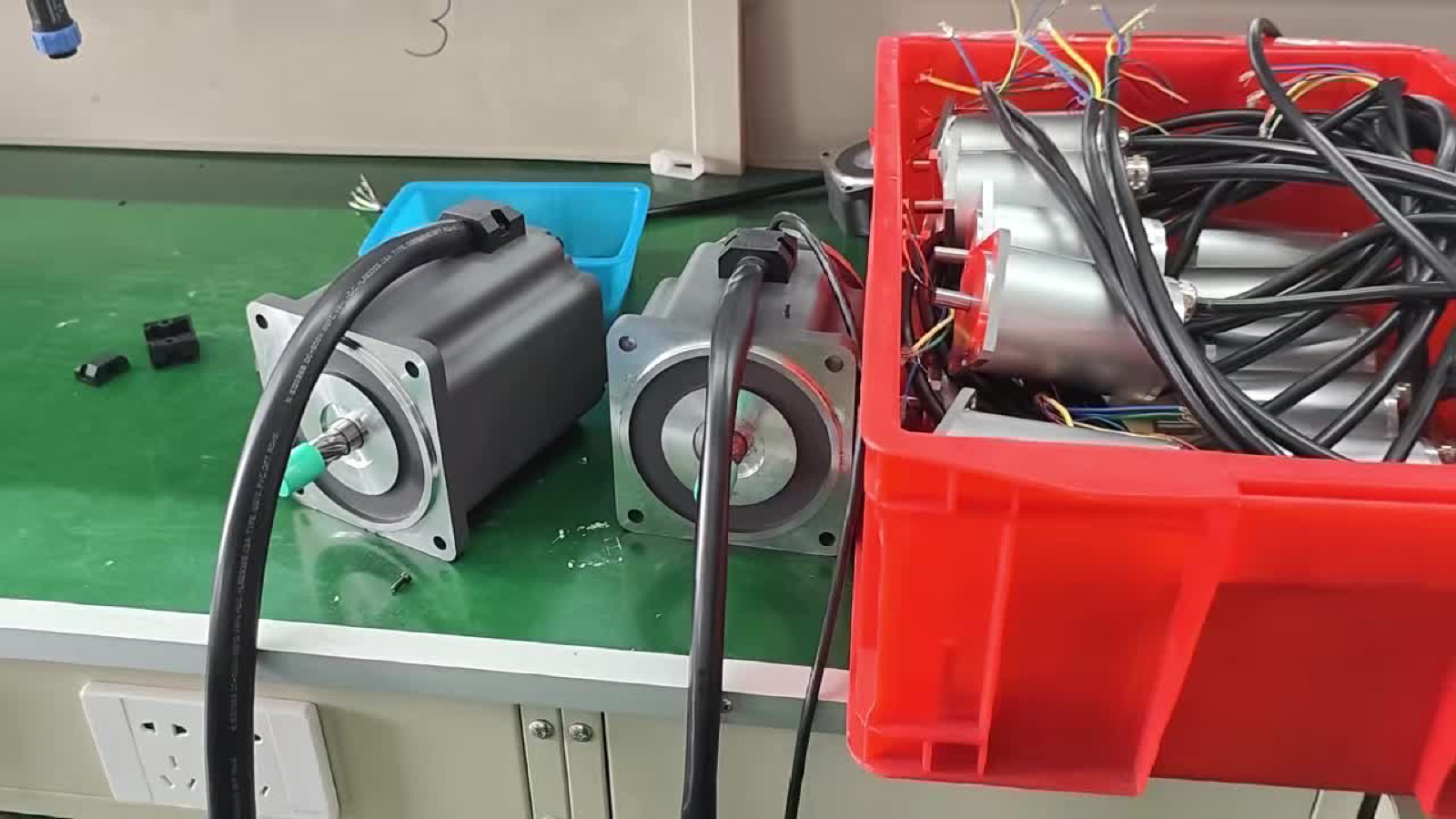

BLDC motors with rear-shaft encoder mounting at Shenghe factory

Why Add An Encoder

Open-Loop Hall Feedback Is Not Enough For Most Automation.

A standard BLDC motor uses three Hall sensors for commutation only — the controller knows the rotor sector but not exact angle or speed. That's fine for a fixed-speed fan or pump, but it leaves the motor unable to track a speed profile, hold position under varying load or recover position after power loss. An encoder closes that loop.

Real-time speed feedback for closed-loop velocity control
Exact rotor position for accurate stopping and indexing
Power-loss recovery (with absolute encoder)
Required by most servo controllers and AGV motion stacks

Encoder Selection

Pick The Encoder That Matches The Job.

The right encoder depends on whether you need speed feedback only, exact position, or power-loss recovery.

Encoder Type	Resolution	Output	Best For
Incremental optical	1024 / 2000 / 2500 PPR	A/B/Z (TTL or HTL)	AGV speed feedback, conveyors, packaging
Incremental magnetic	1024 PPR typical	A/B/Z (HTL)	Harsh-environment AGV, washdown applications
Absolute single-turn	17-bit (131,072 c/rev)	SSI / BiSS-C	CNC sub-axes, robotics joints, indexers
Absolute multi-turn	17-bit + 16-bit turns	SSI / BiSS-C / EnDat	Long-stroke positioners, lifters with power-loss recovery
Bus encoder	17-bit	CANopen / EtherCAT	Multi-axis robotics and synchronized automation

Spec Coverage

BLDC Motor With Encoder Configurations.

Encoder option is available across our standard frame sizes from 42mm to 130mm.

Frame	Power	Voltage	Default Encoder	Suggested Page
42mm	30 – 100W	12V / 24V	1024 PPR incremental	Small BLDC Motor
57mm	100 – 400W	24V / 48V	1024 / 2500 PPR	24V BLDC Gear Motor
80mm	400 – 750W	48V	2500 PPR / 17-bit	48V BLDC Gear Motor
100mm	1000 – 1500W	48V / 72V	2500 PPR / 17-bit absolute	Large BLDC Motor
130mm	2000 – 3000W	72V / 96V	17-bit absolute	3000W BLDC Motor

Application Coverage

Where Encoder Feedback Is Required.

AGV / AMR Drive

1024-2500 PPR incremental encoder for closed-loop wheel-speed control. See BLDC motor for AGV.

Robotics & Cobots

17-bit absolute encoder per joint for exact position recovery and synchronized multi-axis motion.

Conveyor & Sorting

Incremental encoder for closed-loop belt speed and tracking. See BLDC motor for conveyor.

Packaging Machines

Encoder feedback for synchronized cycle motion (cutter, feeder, capper).

CNC Sub-Axes

Tool-changer indexer, secondary axis or auxiliary feed drive — absolute encoder for repeatability. See brushless motor for CNC.

Indexing & Rotary Tables

Absolute encoder for stop-at-station accuracy. Required when fixture position must be known on power-up.

BLDC Motor With Encoder FAQ

Frequently Asked Questions.

Why add an encoder?

Closed-loop speed and position control. Without it, a BLDC motor runs open-loop on Hall sensors only — fine for fixed-speed but not for tracking a profile or stopping at exact position.

Incremental vs absolute?

Incremental (1024-2500 PPR) for speed feedback — AGV, conveyor, packaging. Absolute (17-bit) for exact position with power-loss recovery — CNC, robotics, indexers.

What protocols?

Incremental: A/B/Z (TTL or HTL). Absolute: SSI, BiSS-C, EnDat. Bus: CANopen, EtherCAT, RS485 / Modbus. Tell us your controller and we'll match.

Add encoder later?

Yes for motors with extended rear shaft and mounting boss. Retrofit kits available. For OEM projects, specify up front so housing and cable design match.

Is this a servo motor?

Encoder is the first step. Full servo also needs a closed-loop controller. See BLDC servo motor.

What to send for a quote?

Voltage, power, output speed, torque, encoder type, PPR / resolution, protocol, shaft, mounting, quantity, controller / drive.

Continue Browsing

Request Quote

Send Your Encoder-Equipped Motor Spec.

Tell us motor voltage and power, encoder type and resolution, controller protocol and the application. We'll match it inside 24 hours.
