BLDC servo motor vs AC servo motor — what's the difference?

BLDC servo motors are DC-supplied, simpler to drive from battery or DC bus, and dominate AGV / mobile robotics where DC is native. AC servo motors run from AC mains via a separate servo drive and dominate industrial machine tools and stationary automation. For battery-powered or DC-bus equipment, BLDC servo is usually the better fit.

What encoder resolution do I need?

Speed-feedback applications typically use incremental encoders at 1024 to 2500 PPR. Position-control applications start at 2500 PPR and go up to 17-bit absolute encoders (131,072 counts/rev) for high-precision indexing. AGV and conveyor drives commonly use 1024-2500 PPR; CNC and robotics use higher-resolution absolute encoders.

Can I use a BLDC servo motor with my existing controller?

Yes if the controller supports BLDC commutation (Hall + encoder feedback) and the motor's pole-pair count, encoder protocol and current rating match the drive. Common controller protocols supported are CANopen, RS485 / Modbus, EtherCAT, pulse-direction and analog ±10V. Tell us your controller and we will match the motor configuration.

BLDC Servo Motor Manufacturer

BLDC Servo Motor — Closed-Loop Precision For Robotics, AGV And Automation.

BLDC servo motors combine the efficiency, low noise and long life of brushless DC motors with closed-loop position, velocity or torque control. Encoder feedback (incremental or absolute) plus a matched servo controller turns a BLDC motor into a precision actuator suitable for robotics, AGV / AMR drive, CNC sub-axes, packaging machines and indexing automation.

Request a Quote WhatsApp

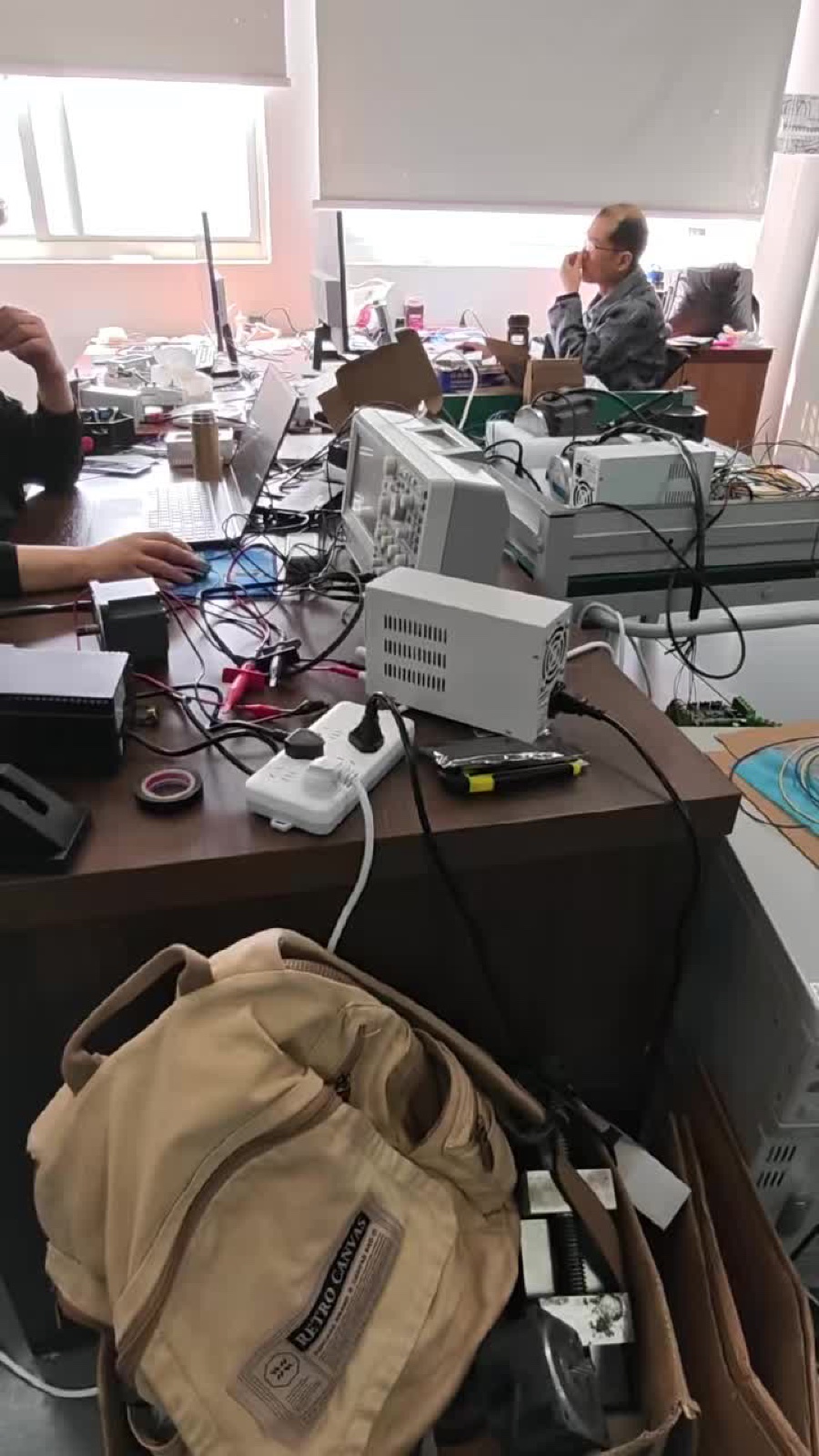

BLDC servo motor on R&D test bench at Shenghe factory

What Makes It A "Servo"

Motor + Encoder + Closed-Loop Controller.

A standard BLDC motor runs open-loop on Hall feedback. A BLDC servo motor adds an encoder and a closed-loop controller that compares commanded position / velocity / torque against measured feedback, then adjusts current in real time. The result is sub-millisecond response, repeatable positioning and stable torque control under varying load.

Closed-loop position, velocity and torque control modes
Encoder feedback — incremental for speed, absolute for precision indexing
Servo controller integration — CANopen, RS485, EtherCAT and pulse-dir
Dynamic response: typical position settle <100ms at full load

Spec Coverage

BLDC Servo Motor Configurations.

Standard frames and power points. Custom encoder protocol, voltage and gear ratio on request.

Frame	Power	Voltage	Encoder	Typical Use
57mm	100 – 200W	24V / 48V	1024 PPR	Compact robotics, lab automation
80mm	400 – 750W	48V	2500 PPR / 17-bit	AGV drive, sorter, packaging
100mm	1000 – 1500W	48V / 72V	2500 PPR / 17-bit	Heavy AGV, CNC sub-axis
120mm	1500 – 2000W	72V	17-bit absolute	Industrial robotics, indexers

Servo vs Standard BLDC

When To Step Up From A Standard BLDC.

Need	Standard BLDC (Hall only)	BLDC Servo (encoder + closed loop)
Run at fixed speed	✓ Sufficient	Optional
Track a commanded velocity profile	✗ Open-loop drift	✓ Closed-loop accuracy
Stop at exact position	✗ ±1 mech. revolution	✓ <0.1°
Hold torque under varying load	✗ Speed sags	✓ Torque-mode hold
Multi-axis coordination	✗ Limited	✓ EtherCAT / CANopen sync

Application Coverage

Where BLDC Servo Motors Fit.

Robotics & Cobots

Joint actuators, gripper drives, mobile manipulator wheels — closed-loop torque and position control.

AGV / AMR Drive

Drive and steering on autonomous AGV / AMR with encoder feedback for closed-loop speed. See BLDC motor for AGV.

CNC Sub-Axes

Tool changers, secondary indexers and conveyor sub-modules in CNC machines. See brushless motor for CNC.

Packaging Machinery

Cutter, feeder and pick-and-place stations needing sub-millisecond cycle precision.

Sorting Lines

Cross-belt sorter cells, tilt-tray indexers and high-throughput diverter drives.

Indexing & Rotary Tables

Precision-indexed dials, multi-station rotary fixtures and assembly tables.

BLDC Servo Motor FAQ

Frequently Asked Questions.

What is a BLDC servo motor?

A BLDC motor combined with encoder feedback and a closed-loop controller, so it accurately tracks a commanded position / velocity / torque. Combines BLDC efficiency and life with servo precision.

BLDC servo vs AC servo?

BLDC servo runs from DC bus or battery — dominates AGV / mobile robotics. AC servo runs from AC mains via a separate drive — dominates machine tools and stationary automation.

What encoder resolution?

1024-2500 PPR incremental for speed feedback. Up to 17-bit absolute (131,072 counts/rev) for high-precision indexing. AGV / conveyor: 1024-2500 PPR. CNC / robotics: 17-bit absolute.

Use my existing controller?

Yes if the controller supports BLDC commutation and matches pole-pair count, encoder protocol and current rating. Common protocols: CANopen, RS485 / Modbus, EtherCAT, pulse-direction, analog ±10V.

Can it be paired with a gearbox?

Yes — planetary gearboxes are most common for servo applications because of low backlash. See BLDC planetary gear motor.

What to send for a quote?

Voltage, power, output speed, torque, gear ratio, encoder type / resolution, controller / protocol, shaft, mounting, brake, duty cycle, application.

Continue Browsing

Request Quote

Send Your Servo Motor Spec.

Tell us voltage, power, output speed, torque, encoder protocol, controller integration and application. We'll come back with a matched build in 24 hours.
