3 Phase Brushless DC Motor Manufacturer

3 Phase Brushless DC Motor — Industrial BLDC, 30W–2000W, OEM/ODM.

All Shenghe industrial BLDC motors are 3-phase designs — the industry-standard architecture for smooth torque, high efficiency and reliable electronic commutation. This page covers the full range from compact 42mm motors for lab automation and medical pumps to 120mm high-power motors for AGV traction, heavy conveyor drives and industrial machine builds.

3-phase = smoother torque, lower cogging, higher efficiency than single-phase
Hall sensor commutation standard; encoder and brake factory options
OEM/ODM: custom voltage, winding, shaft, connector, mounting and gearbox

Request a Custom Motor Quote How 3-Phase BLDC Works

3-Phase
Industry standard

30W–2000W
Power range

85–92%
Motor efficiency

ISO 9001
Factory certified

Product Gallery

3-Phase BLDC Motors — Full Range.

Shenghe 3 phase brushless DC motor, BL80 frame with Hall sensors

How It Works

3-Phase BLDC — Why Three Phases Matter.

A 3-phase brushless DC motor has three sets of stator windings arranged 120° apart electrically. A BLDC controller energizes the windings in sequence — based on rotor position feedback from three Hall sensors — producing six commutation steps per electrical cycle. This delivers:

Smoother torque: six commutation steps per cycle vs two in single-phase — lower torque ripple and vibration
Higher efficiency: typically 85–92% — better copper utilization than single-phase or 2-phase
Higher starting torque: reliable self-starting under load in any rotor position
Lower acoustic noise: smooth current waveform reduces magnetic noise — critical for medical, lab and indoor automation

For even smoother operation, add an incremental encoder and use a Field-Oriented Control (FOC) driver — Shenghe supplies matched motor + controller + encoder packages.

Product Range

3 Phase BLDC Motor Range by Frame Size.

Frame	Power	Rated Speed	Voltages	Typical Use
BL42	30W–100W	3000–4000 RPM	12V / 24V	Lab automation, medical pump, cobot joint
BL57	60W–200W	3000–4000 RPM	24V / 36V / 48V	3D printer, vending, small conveyor
BL60	100W–400W	3000–4000 RPM	24V / 48V	Pump, fan, packaging, textile
BL80	200W–500W	3000–4000 RPM	24V / 48V / 72V	Fitness equipment, automatic door, elevator
BL90	300W–750W	3000–5000 RPM	48V / 72V / 110V	Mid-class AGV, sorting, stage equipment
BL104	500W–1500W	3000–5000 RPM	48V / 72V / 110V / 220V	Heavy conveyor, AGV traction, CNC auxiliary
BL120	1000W–2000W	3000–5000 RPM	48V / 72V / 110V / 220V	Heavy-duty AGV, tracked vehicle, industrial machine

3-Phase vs Single-Phase

Why 3-Phase BLDC Is the Industrial Standard.

Attribute	3-Phase BLDC	Single-Phase BLDC
Torque ripple	Low (6 commutation steps)	High (2 steps)
Starting torque	Reliable self-start under load	May need alignment aid
Efficiency	85–92%	70–80%
Acoustic noise	Low	Higher
Power range	30W to multi-kW	Typically <50W
Typical use	Industrial, AGV, conveyor, robotics	Small fans, consumer appliances

All Shenghe BLDC motors are 3-phase — we do not manufacture single-phase or 2-phase brushless motors.

Controller Matching

Matched 3-Phase BLDC Motor + Controller Packages.

Every 3-phase BLDC motor needs a compatible controller (driver) for commutation. Shenghe manufactures both BLDC motors and BLDC motor controllers in-house — so we can supply a matched motor + controller package tested together at the factory. This eliminates the integration risk of sourcing motor and controller from different suppliers.

Six-step trapezoidal commutation (standard) or FOC sinusoidal drive (advanced)
Speed / torque / position control modes
RS-485, CAN bus, 0–10V analog, PWM input options
Regenerative braking and overcurrent protection built in

See BLDC Motor Controller options →

Shenghe 3-phase BLDC motor BL60 with controller, encoder and gearbox options

Need a 3-Phase BLDC Motor for Your Project?

Send us your voltage, power and application requirements. We will recommend a matched 3-phase motor build — bare or with gearbox + controller — and respond within 24 hours.

Get a Motor Recommendation WhatsApp Us Now

For Different Buyer Roles

What Matters Most — Depends on Who You Are.

For OEM Engineers

BLDC motor test bench at Shenghe Motor R&D lab

Torque-speed curve, Ke/Kt constants, winding data on request
Custom winding for your voltage / RPM target
Encoder / brake integration at factory
3D STEP file for mechanical fit check

Request Datasheet →

For Procurement Teams

Finished BLDC motor inventory at Shenghe warehouse

MOQ: 1 pc sample, 50 pcs production
Payment: T/T 30/70, L/C ≥ USD 30k, PayPal for samples
Sample 7–10 days; production 2–3 weeks ex-Cixi
ISO 9001, CE, RoHS — factory audit welcome

Request Pricing →

For System Integrators

BLDC motor controller PCB assembled at Shenghe factory

Motor + gearbox + controller as one tested package
CAN bus / RS-485 / analog / PWM control interfaces
Custom cable length, connector and labeling
Engineering support from motor sizing to system integration

Discuss Your Project →

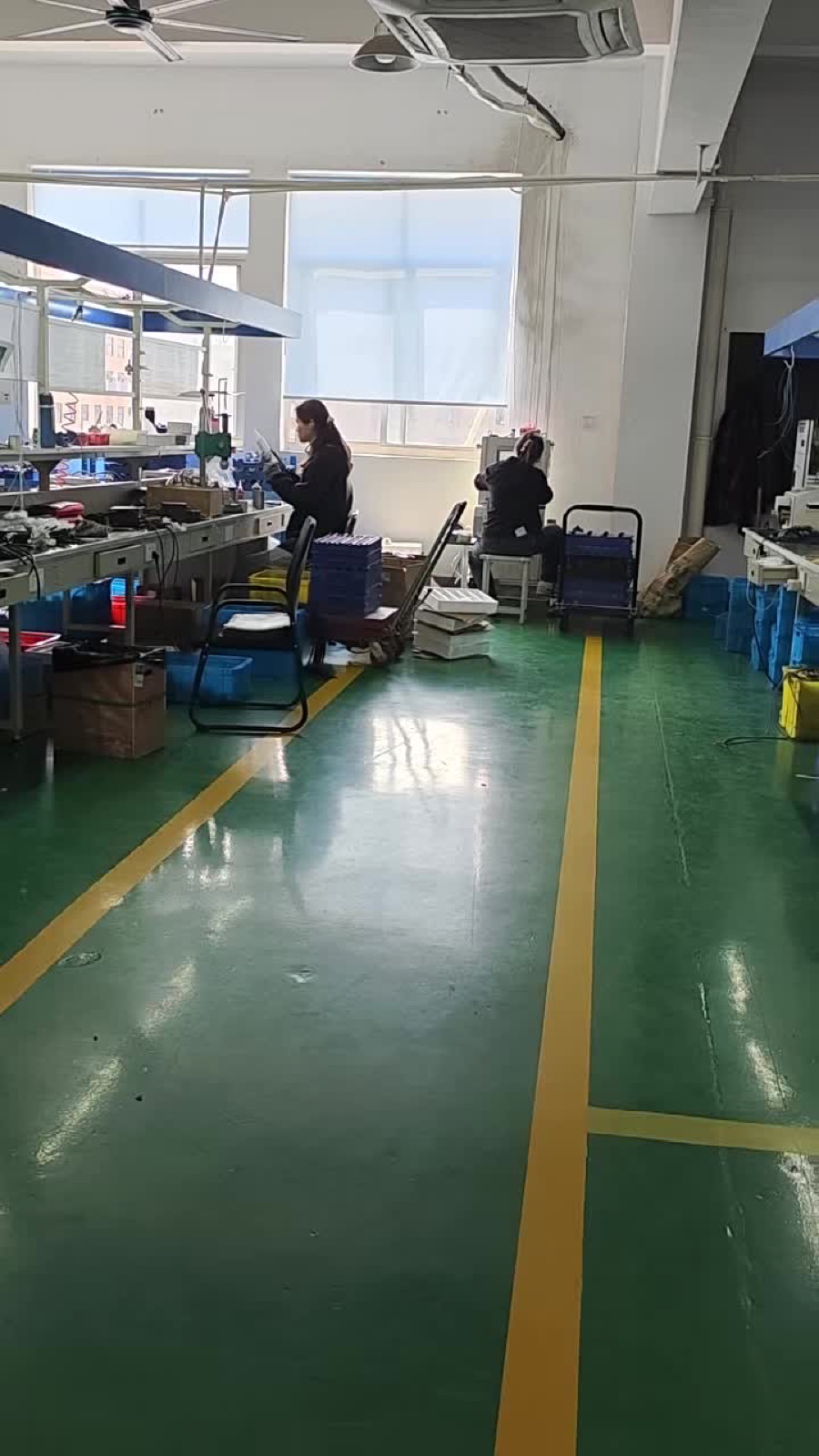

Shenghe Motor workshop floor — CNC, winding and assembly in one factory

Manufacturer Backing

Built In-House — Not Resold.

Shenghe owns the factory in Cixi, Ningbo. CNC machining, stator winding, rotor assembly, controller PCB production and end-of-line dyno testing all run under one roof. Single PO, single warranty, single point of accountability.

See Factory Walk-Through →

3 Phase Brushless DC Motor — Frequently Asked Questions

What is a 3 phase brushless DC motor?

A 3 phase brushless DC motor (3-phase BLDC motor) has three sets of stator windings arranged 120° apart electrically. A BLDC controller energizes the windings in sequence based on rotor position feedback from Hall sensors, producing smooth, continuous rotation without carbon brushes. The 3-phase design delivers smoother torque ripple, higher efficiency and lower vibration compared to single-phase or 2-phase alternatives — it is the standard architecture for industrial BLDC motors.

What is the difference between a 3 phase BLDC motor and a single phase BLDC motor?

A 3-phase BLDC motor has three winding sets and produces six commutation steps per electrical cycle, resulting in smoother torque, lower cogging and higher efficiency. A single-phase BLDC motor (common in small fans and low-power consumer products) has only one winding set and produces more torque ripple, lower starting torque and lower efficiency. For industrial applications — conveyors, AGVs, pumps, robotics — 3-phase BLDC is the standard choice.

How does a 3 phase BLDC motor controller work?

A 3-phase BLDC motor controller uses six power MOSFETs or IGBTs arranged in a 3-phase bridge. Three Hall sensors in the motor detect rotor position and send signals to the controller, which energizes the correct pair of stator windings in sequence (six-step commutation). More advanced controllers use Field-Oriented Control (FOC) with encoder feedback for smoother operation and precise speed/torque control. Shenghe offers matched BLDC motor + controller packages.

Can a 3 phase brushless DC motor be paired with a gearbox?

Yes. Pairing a 3-phase BLDC motor with a planetary, spur, worm or right-angle gearbox is standard practice for applications that need low output speed and high torque — AGV drives, conveyor systems, robotic actuators, packaging machines. Shenghe supplies motor + gearbox as one factory-assembled, dyno-tested unit with a single warranty.

What is a small 3 phase brushless DC gear motor?

A small 3 phase brushless DC gear motor is a compact (typically 22–42mm housing, ≤100W) 3-phase BLDC motor with an integrated gearbox. Common applications include cobot joints (24V 30–60W with planetary gearbox and encoder), lab automation instruments (12V/24V 20–50W, vibration-free), and medical pumps (NSF H1 food-grade grease). The 3-phase design ensures smooth, low-cogging torque even at small sizes.

Continue Browsing

Request Quote

Tell Us Your Motor Requirements.

Provide voltage, power, speed, torque, load type and application — we will recommend a matched 3-phase BLDC motor build and provide pricing.
